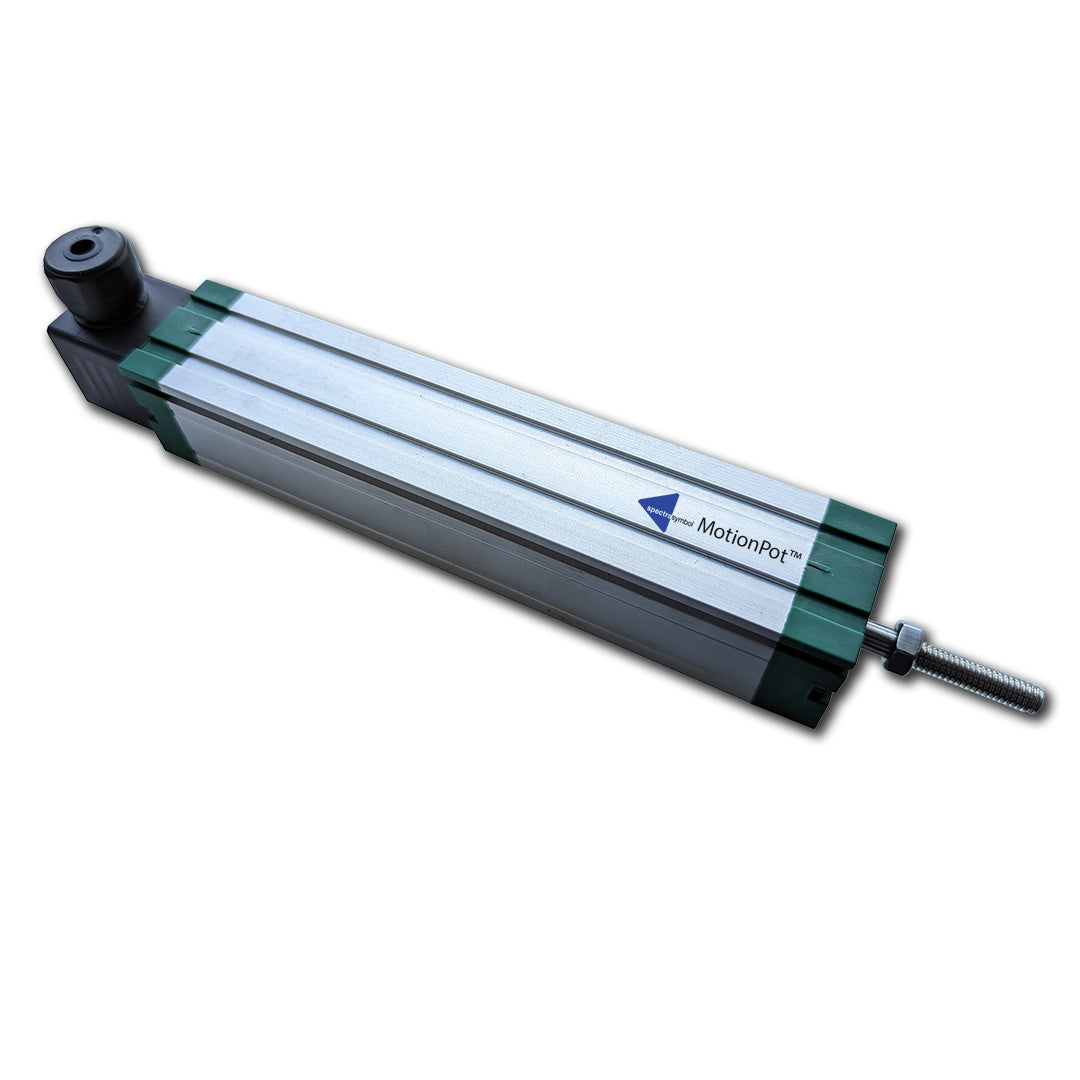

Overview: Discover the precision and reliability of the MotionPot Linear Motion Potentiometer by Spectra Symbol, a robust and versatile component designed to meet the demanding requirements of various industrial applications. With an emphasis on ease of installation and superior performance, the MotionPot is the ideal choice for engineers and technicians seeking accurate linear position feedback.
Key Features:
- Easy Installation: The MotionPot is designed for hassle-free installation, featuring mounting grooves that offer an alternative to traditional bracket fastening, ensuring quick and secure setup.
- Durable Construction: Built to last, the potentiometer boasts a life cycle of over 10 million cycles, with an anodized aluminum and Nylon 66 case for enhanced durability and resistance to wear.
- Precision Engineering: Equipped with a stainless steel AISI 303 shaft, the MotionPot delivers consistent and reliable performance with a displacement force tailored for precise operation.
- High Accuracy: The MotionPot provides an independent linearity of ±0.5%, ensuring accurate linear position feedback with a resolution that is theoretically infinite.
- Versatile Applications: Ideal for use in plastic injection presses, vertical presses, and various other types of processing equipment, the MotionPot excels in diverse industrial environments.
Mechanical Specifications:
- Life Cycle: Over 10 million cycles
- Acceleration: 100mm/s max
- Case Material: Anodized Aluminum, Nylon 66
- Shaft Material: Stainless Steel AISI 303
- Mounting Options: Brackets with adjustable distance between centers or with M5 screw ISO4014-DIN933
Electrical Specifications:
- Resistance: 10K Ohms (lengths >300mm = 20K Ohms)
- Resistance Tolerance: ±20%
- Effective Electrical Travel: 8mm to 500mm
- Linearity: ±0.5%
- Power Rating: 1 Watt max. @ 25°C, <0.5 Watt recommended
- Resolution: Analog output theoretically infinite
- Dielectric Value: No effect @ 500VAC for 1 minute
Environmental Specifications:
- Operating Temperature: -40°C to +85°C
- Humidity Resistance: No effect @ 95% RH, 4hrs 50°C
- IP Rating: IP60 for the active area
Product Dimensions:
- Active Length: 100mm
- Total Part Length: 163mm (6.417")
Series and Resistance Options:
- Series: MOT (MotionPot)
- Resistance: 10K Ohms for active lengths <300mm, 20K Ohms for active lengths >300mm
- Connector: 18DIN0.5%
Applications:
- Plastic Injection Presses: Ensure precise position feedback for optimal control.
- Vertical Presses: Reliable performance in vertical applications requiring accurate motion detection.
- Processing Equipment: Versatile solution for various processing machines needing robust and accurate linear potentiometers.
Enhance your industrial applications with the MotionPot Linear Motion Potentiometer by Spectra Symbol, designed for precision, durability, and ease of use. Order yours today and experience the difference in performance and reliability.
